22

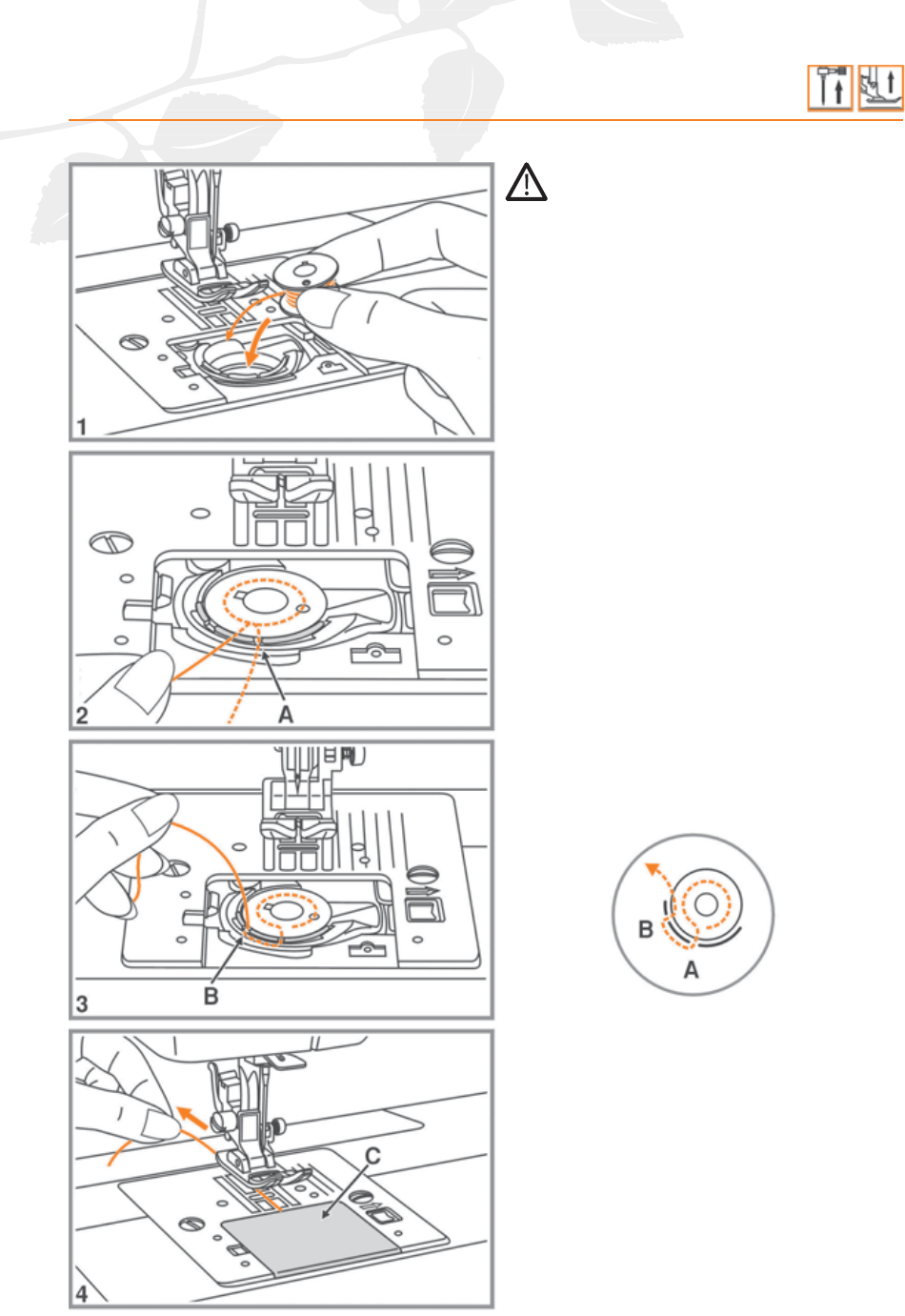

INSERTING THE BOBBIN

Attention: Turn power switch to off (“O”)

before inserting or removing the bobbin.

When inserting or removing the bobbin, the

needle must be fully raised.

1. Remove the bobbin cover and insert the

bobbin in the bobbin case with the thread

running in a counterclockwise direction

(arrow).

2. Pull the thread through the slit (A).

3. Pull the thread toward the left and along

the inside of the spring until it slips into

the notch (B) being sure that the thread

does not slip out of the slit (A).

4. Pull out about 15 cm (6 inches) of thread

and slide on the bobbin cover. (C)
