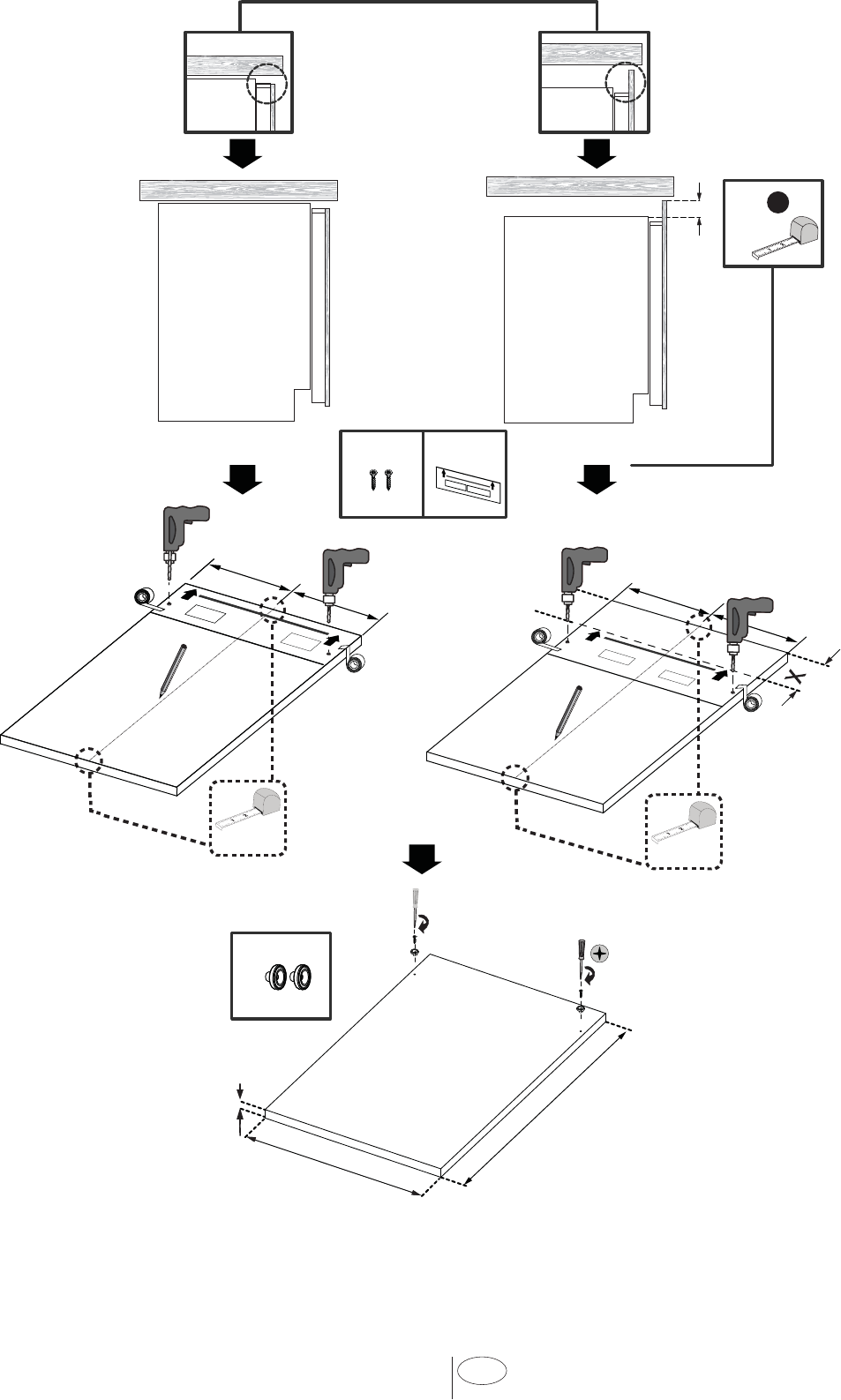

7.5 PREPARING THE CUSTOM DOOR

X =

?

X

=

=

Mid. Point

=

=

Mid. Point

Height (h) : Height of the wooden door 30” (760mm)

Width (w) : 23 ¼” to 23 ½” (592mm - 595mm)

Thickness (t) : ¾ “ (19mm)

Weight (max) : 9 Kg / 19 lbs

Weight (max)

9 Kg / 19 lbs
